Setout Surveys

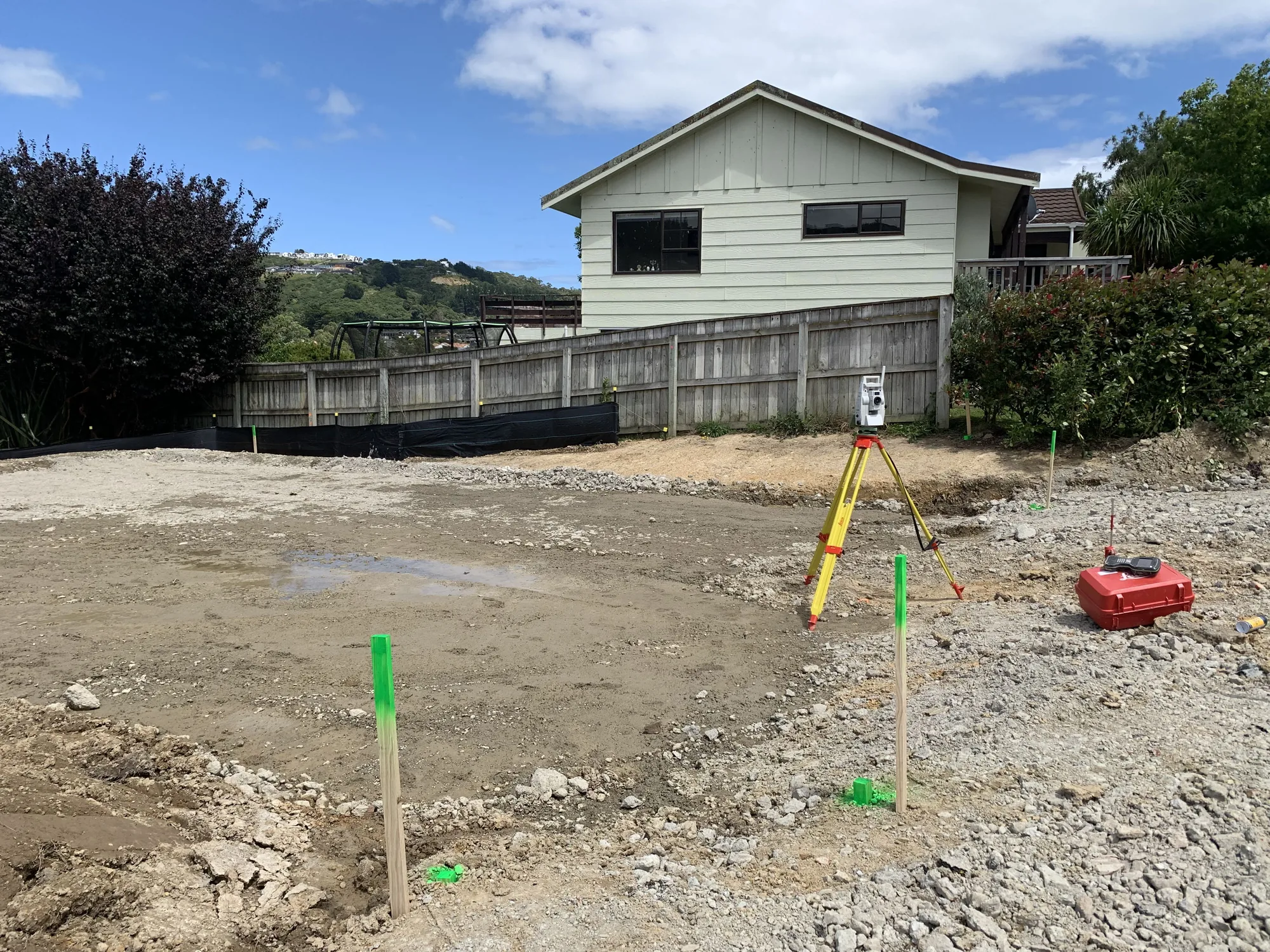

A setout survey marks positions on the ground that correspond to points on an approved design, such as building corners, pile locations, road alignments, or service trenches. It translates the designer's plans into physical marks that the construction team can build to. Accurate setout is the link between design and construction.

A building or structure placed in the wrong position relative to its legal boundary or the approved design can result in enforcement action, costly demolition, or legal liability. On civil projects, inaccurate setout can cause alignment issues that propagate through the whole project. Orogen's surveyors take responsibility for the accuracy of what goes in the ground.

Before any physical construction starts. We need to review the design plans, confirm the datum and coordinate system, and liaise with the engineer or architect before placing any marks. Rushing the setout stage to save time often creates problems that take far longer to fix.

Yes. We set up a consistent survey control framework at the start of a project that all subsequent setout work references. This ensures that each building or stage is correctly positioned relative to the others and to the legal boundaries, regardless of how much time passes between stages.

We work directly with the site foreman or project manager to confirm what marks are needed, when they are needed, and how they should be protected from construction activity. We also provide a marked-up plan showing the setout so the team has a clear reference while building.

If an error is discovered early, it can often be corrected before the next stage of construction. If discovered late, the options are more limited and expensive. Orogen's setout reduces this risk by verifying marks before construction proceeds and providing documentation of what was set out and when.
