Precise Construction Setout

Precise construction setout is required for structures or installations where normal construction tolerances are insufficient, such as bridge bearings, precast panel connections, rail alignments, industrial machinery foundations, and precision pipelines. It uses higher-accuracy equipment and more rigorous verification procedures than standard setout.

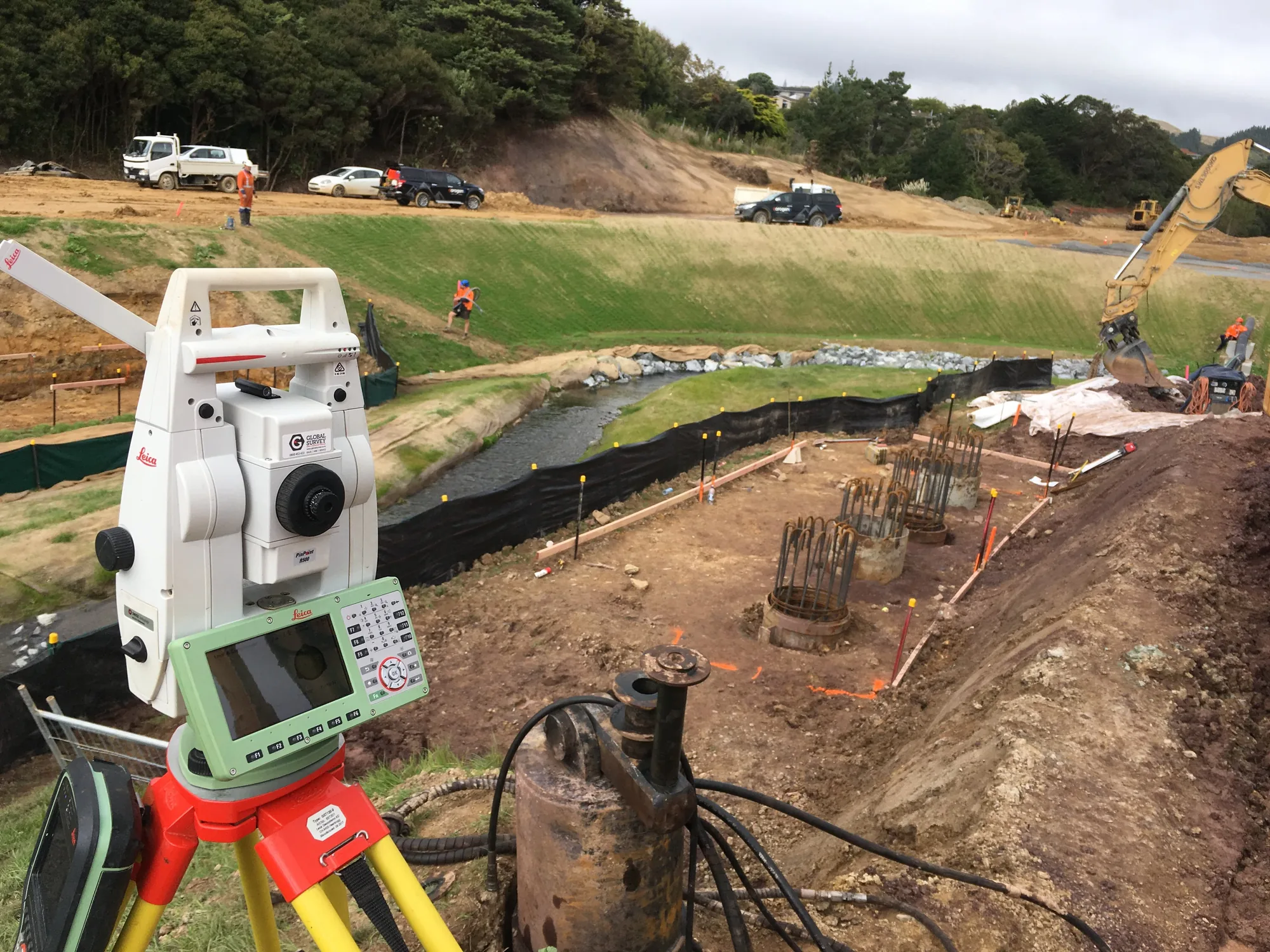

For precise setout applications, we can achieve 1-3mm positional accuracy using calibrated high-precision total stations and systematic checking procedures. The required tolerance is agreed with the design engineer before work starts.

Bridges and culverts where precast elements must align precisely, industrial structures with close-tolerance mechanical connections, precision pipelines where gradient accuracy is critical, tunnels and underground structures, and large public buildings where architectural finishes must align exactly.

Precise setout involves additional instrument checks and calibration, more reference control points, independent verification of marked positions before construction proceeds, and more detailed documentation. The process takes longer per mark, but the investment is proportionate to the cost of getting it wrong.

We carry out a series of independent checks. All verification is documented and provided to the project team as part of the setout record.

Yes. For projects where structures are being placed near existing infrastructure or in geotechnically sensitive areas, we can combine precise setout with a monitoring programme. This gives the project team confidence that the new structure is in the right place and that the surrounding ground and structures are responding as expected.
